Lauterbach GmbH
Lauterbach is the world's largest producer of complete, modular and upgradeable microprocessor development tools worldwide with experience in making world class debuggers and real-time trace since 1979. The company headquarters are located in Hoehenkirchen-Siegertsbrunn, east of Munich.
Debugger
PowerDebug System
Universal debug base modules for every embedded project. Choose Essential or Extended Connectivity line.

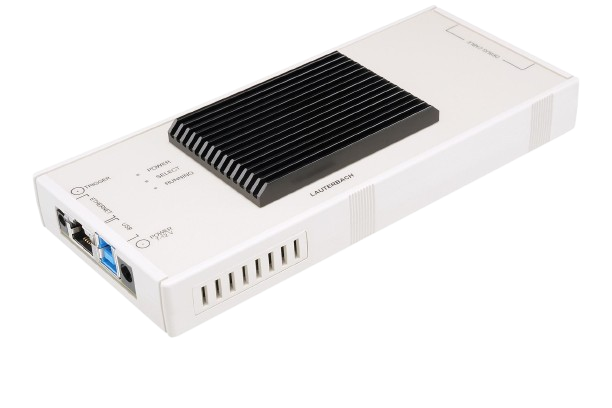

PowerDebug X51
High-performance, modular and future-proof debug controller. Extended Connectivity Line (Gen 5) with 2.5 Gbit Ethernet and USB-C 3.2.
PowerDebug E50
Essential-line debug controller (Gen 5). Superior performance for simple and complex debug tasks. Successor to the popular E40.

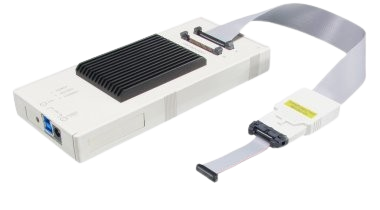

µTrace All-In-One
Compact combined debug and trace solution for ARM Cortex-M devices. All-in-one form factor for space-constrained setups.
Trace Extensions
PowerTrace System & CombiProbe
Real-time trace recording and analysis. Extend your PowerDebug with high-bandwidth trace capabilities.
PowerTrace Serial 2
Serial trace module with 4 GByte memory. Supports ARM CoreSight, AGBT, PCIe 3.0 trace protocols.
- Up to 100 Gbit/s bandwidth (8 lanes × 12.5 Gbit/s)
- 4 GByte trace memory
- Streaming: up to 400 MByte/s
- Requires PowerDebug X51 or X50
PowerTrace III
High-performance parallel trace extension with up to 8 GByte memory and Mixed-Signal Probe support.
- Up to 8 GByte memory
- Parallel trace: up to 36 signals
- 600+ Mbit/s per signal (17 signals)
- Streaming: 400 MByte/s
PowerTrace II LITE
Cost-effective parallel trace extension for mid and low-speed cores. 1 GByte trace memory.
- 1 GByte trace memory
- Streaming: up to 100 MByte/s
- Parallel trace: up to 36 signals
- Serial trace: up to 4 lanes
CombiProbe 2
Compact hybrid debug and trace system for embedded devices with up to 4-bit trace port. Great for Cortex-M and mid-range targets.
- Up to 4-bit trace port
- Works with E50, X51, X50, F40
- Full TRACE32 feature set
- Supports multiple SoC cores
Software Solutions
TRACE32 Software Tools
Powerful software solutions for debug, simulation, and analysis — all using the same familiar PowerView GUI.
PowerView Software
The TRACE32 GUI — unified debug and trace environment for all supported targets.
Learn More →Instruction Set Simulator
Debug and profile software before hardware is available. Same TRACE32 interface.
Learn More →Debugging over USB
Debug targets with built-in USB connectivity using TRACE32 over USB protocol.
Learn More →Debugging via XCP
Non-intrusive measurement and calibration using the XCP protocol standard.
Learn More →Debugger for Simulators
Connect TRACE32 to emulators, simulators and virtual targets for early debugging.
Learn More →Resources
More Products
Access product documentation, datasheets, and software. All hosted on Lauterbach's official downloads portal.
